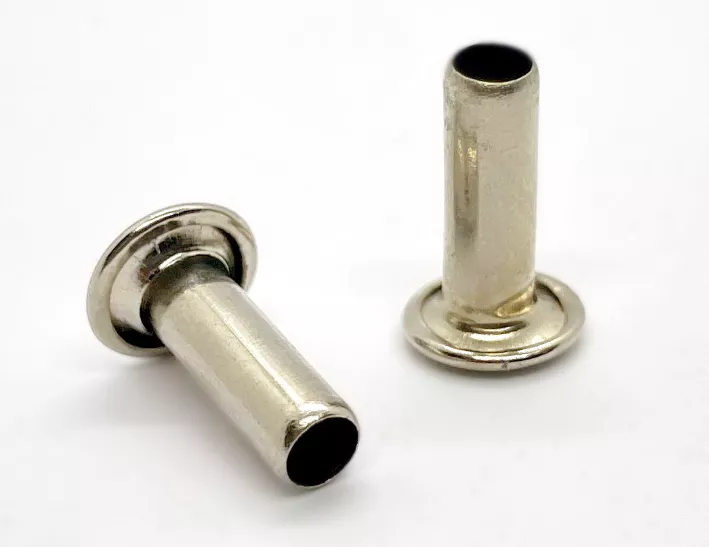

Tubular Rivets 10mm
1 / 4
  • Tubular Rivets 10mm
  • Tubular Rivets 10mm
  • Tubular Rivets 10mm
  • Tubular Rivets 10mm
Tubular Rivets 10mm
Description:
A tubular rivet is a type of fastener used to permanently join two or more pieces of material together. It consists of a hollow shank with a head on one end. Advantages of Tubular Rivets are as follows.
  • Fast and Easy Installation: Tubular rivets can be installed quickly and easily with a simple setting tool, making them ideal for high-volume production lines.
  • Strong and Reliable: They offer a strong and reliable fastening solution, suitable for applications requiring good shear and tensile strength.
  • Good for Thin Materials: They work well with thin materials like sheet metal, plastic, and leather, as the hollow shank expands to fill the hole without damaging the material.
Products Description
Name     :
Tubular rivets, Hollow rivets, Brass tubular rivets, Steel tubular rivets
Model    : KI series
Color     : Nickel, brass, anti-brass, oxide, copper, black nickel, nickel free etc...
Size        : Please see the form below. If there is no size you want, please feel free to contact us.
Packing  : A= plastic bag + carton | B = plastic bag + inner box + carton
Dilivery  : 7-30 working days, depending on order quantity and stock status
Material : steel- SPCC  |   Brass- C2680


Model Head Diameter
mm ( A )
Shank Diameter
mm ( B )
Shank Length
mm ( C )
KI100405
10
4
5
KI100406
10
4
6
KI100407
10
4
7
KI100408
10
4
8
KI100409
10 4 9
KI100410
10
4
10
KI100411
10 4 11
KI100412
10 4 12
KI100413
10 4 13
KI100414
10 4 14
KI100415
10 4 15
